# ESM Major Parts identification

## Please use this page to identify the part number

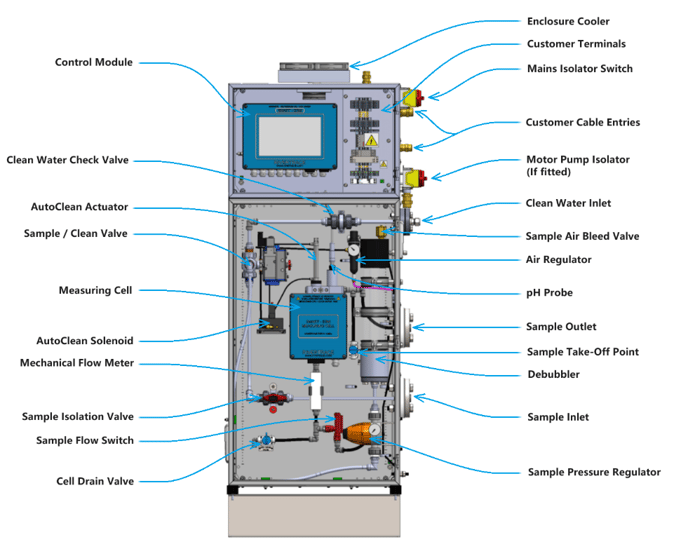

> **Analysing  and control module**

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-29-2025-09-37-14-1629-AM.png?width=688&height=544&name=image-png-Apr-29-2025-09-37-14-1629-AM.png)

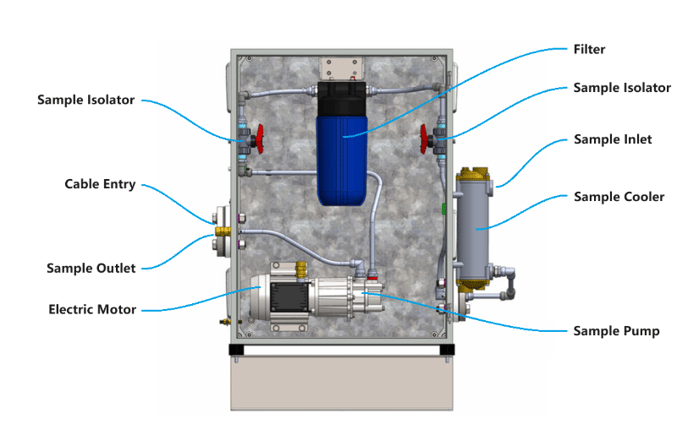

> **Sample pump module**

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-29-2025-09-38-33-2849-AM.png?width=688&height=425&name=image-png-Apr-29-2025-09-38-33-2849-AM.png)



**Main Spare parts**

> **Control Module Assy**

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-29-2025-02-48-59-2651-PM.png?width=688&height=396&name=image-png-Apr-29-2025-02-48-59-2651-PM.png)

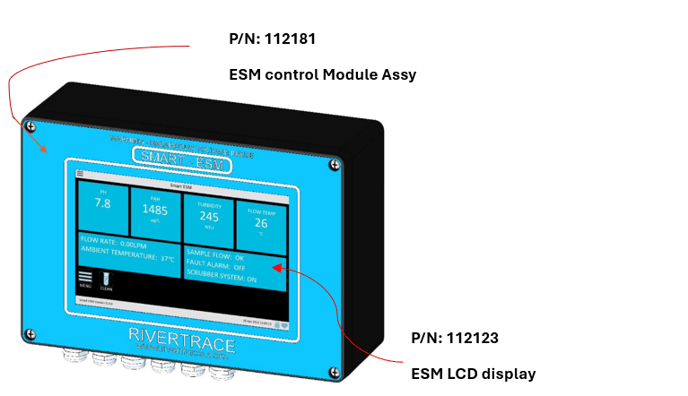

Smart ESM LCD display - Rivertrace Part Number: 112123

Smart ESM Control module assembly- Rivertrace Part Number: 112181

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-29-2025-02-39-38-9123-PM.png?width=688&height=344&name=image-png-Apr-29-2025-02-39-38-9123-PM.png)

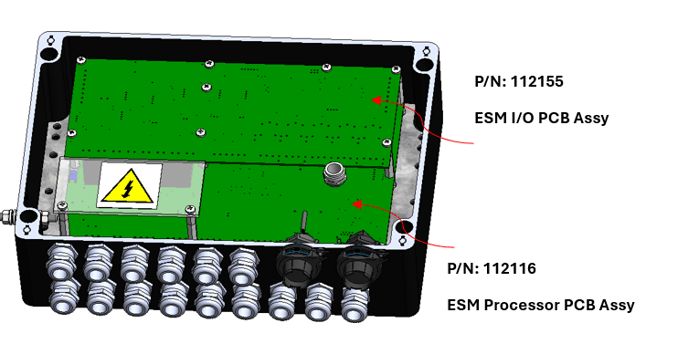

Smart ESM computer IO PCB - Rivertrace Part Number: 112155

Smart ESM computer processor PCB- Rivertrace Part Number:  112116

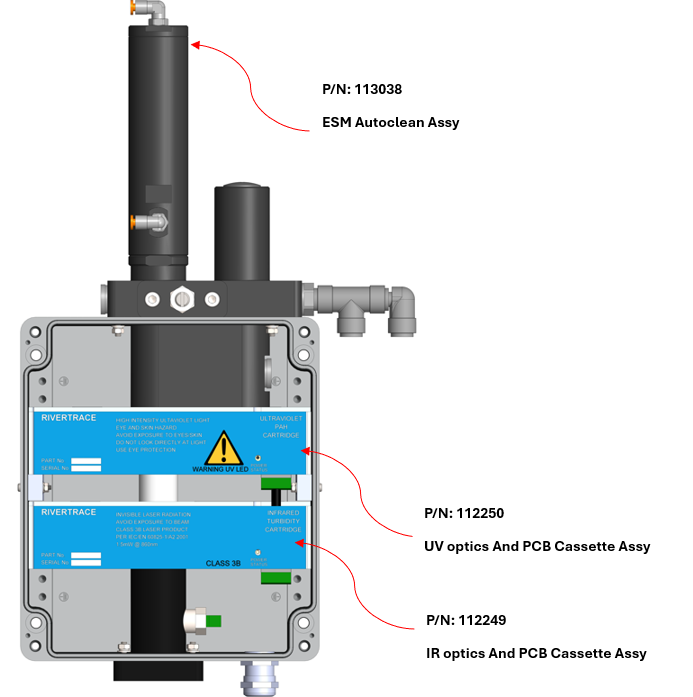

> #### ESM Measuring Cell Assy

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-May-01-2025-08-44-19-8310-AM.png?width=688&height=692&name=image-png-May-01-2025-08-44-19-8310-AM.png)

Smart ESM Autoclean assembly- Rivertrace Part number:113038

Smart ESM  UV optics and PCB cassette assembly(PAH)  - Rivertrace Part number: 112250

Smart ESM IR optics and PCB  cassette assembly(Turbidity)- Rivertrace Part number: 112249

Smart ESM Desiccant Sachet 50g Silica Gel Tywek- Rivertrace Part number: 107271

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-29-2025-03-32-53-2651-PM.png?width=506&height=505&name=image-png-Apr-29-2025-03-32-53-2651-PM.png)

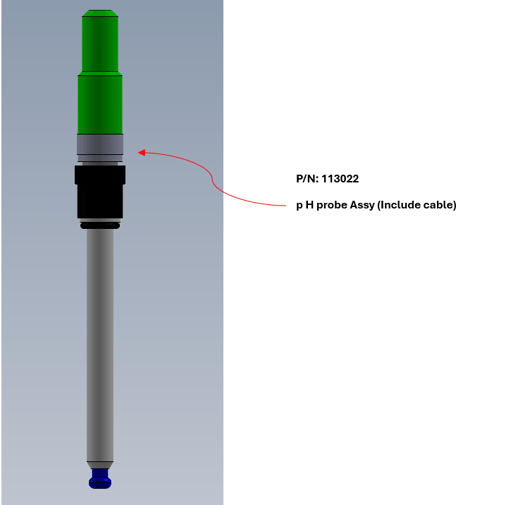

 Smart ESM pH probe assembly (Include cable)- Rivertrace Part number: 113022

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-30-2025-11-31-11-3065-AM.png?width=488&height=448&name=image-png-Apr-30-2025-11-31-11-3065-AM.png)

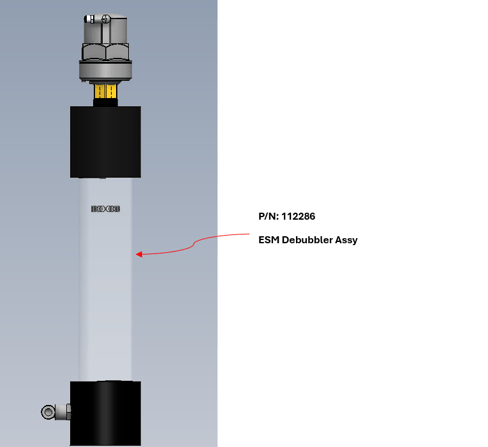

Smart ESM debubbler assembly- Rivertrace Part number: 112286

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-30-2025-11-36-46-0578-AM.png?width=688&height=303&name=image-png-Apr-30-2025-11-36-46-0578-AM.png)

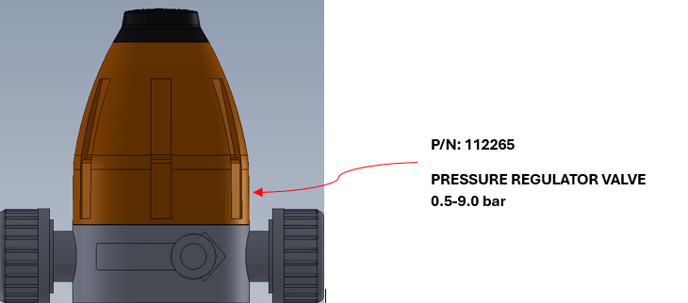

Smart ESM PRESSURE REGULATOR VALVE 0.5-9.0 bar- Rivertrace Part number: 112265

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-30-2025-11-42-08-6427-AM.png?width=667&height=477&name=image-png-Apr-30-2025-11-42-08-6427-AM.png)

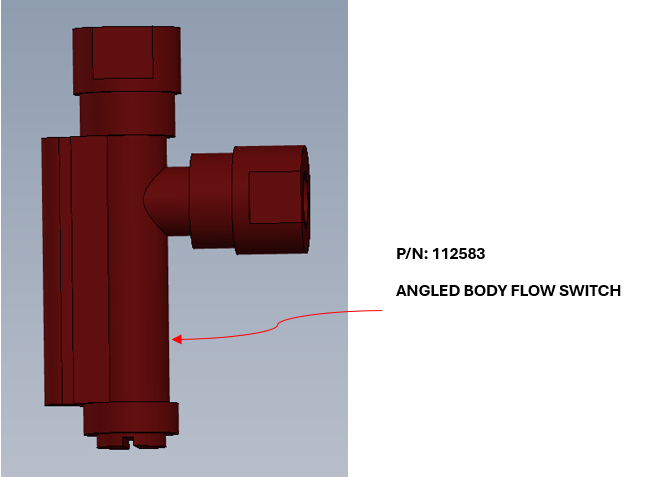

Smart ESM Angled Body Flow  Switch- Rivertrace Part Number: 112583

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-30-2025-11-52-16-5000-AM.png?width=561&height=509&name=image-png-Apr-30-2025-11-52-16-5000-AM.png)

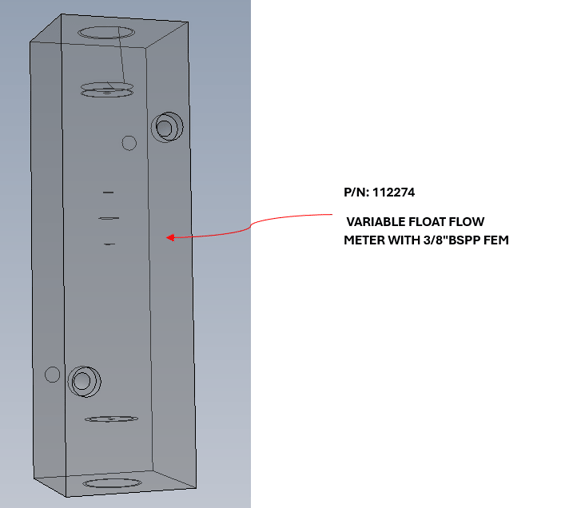

Smart ESM  VARIABLE FLOAT FLOW METER WITH 3/8"BSPP FEM- Rivertrace Part Number 112274

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-30-2025-11-58-32-1975-AM.png?width=688&height=229&name=image-png-Apr-30-2025-11-58-32-1975-AM.png)

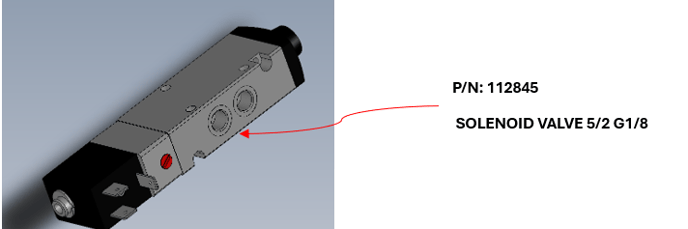

 Smart ESM Solenoid Valve 5/2- Rivertrace Part Number: 112845



> **Sample pump module**

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-30-2025-01-50-43-6477-PM.png?width=688&height=215&name=image-png-Apr-30-2025-01-50-43-6477-PM.png)

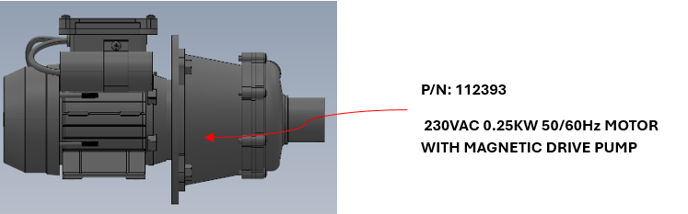

Smart ESM 230VAC 0.25KW 50/60Hz Motor with magnetic  drive pump- Rivertrace Part Number: 112393

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Apr-30-2025-01-54-52-6052-PM.png?width=638&height=425&name=image-png-Apr-30-2025-01-54-52-6052-PM.png)

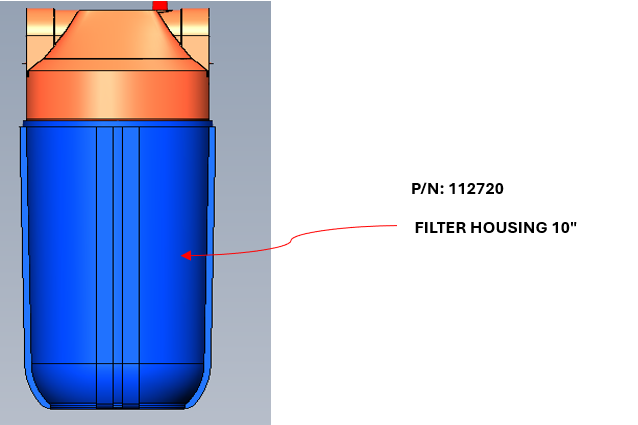

Smart ESM filter housing 10"- Rivertrace Part Number: 112720
