# Camera LED light replacement Procedure

## This guide provides step-by-step instructions for replacing the LED light

**Tool required:**

> 5mm Allen Key

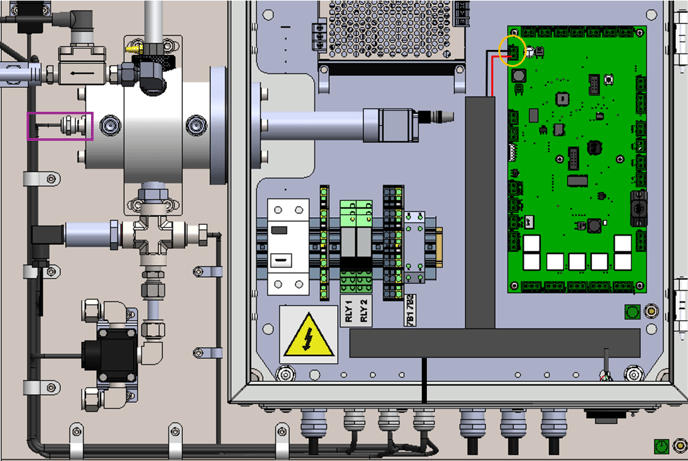

1\. Locate **connector CN10** and carefully remove the cable.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Jun-03-2025-10-22-57-3305-AM.png?width=688&height=462&name=image-png-Jun-03-2025-10-22-57-3305-AM.png)

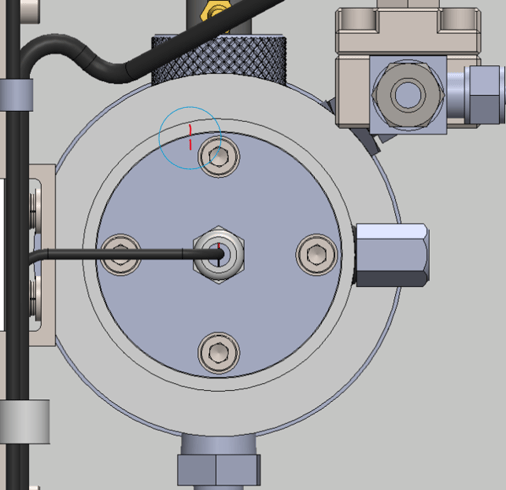

2\. Use a **marker pen** to mark the position of the cover and components. This ensures accurate reassembly.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Jun-03-2025-10-13-41-6981-AM.png?width=506&height=490&name=image-png-Jun-03-2025-10-13-41-6981-AM.png)

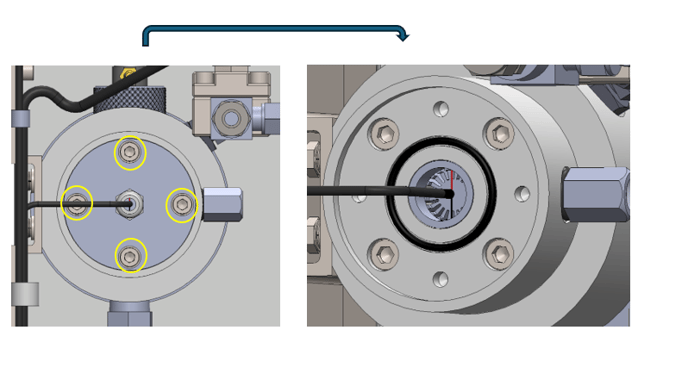

3\. Using a **5mm Allen key**, unscrew and remove the cover.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Jun-03-2025-10-20-28-1985-AM.png?width=688&height=380&name=image-png-Jun-03-2025-10-20-28-1985-AM.png)

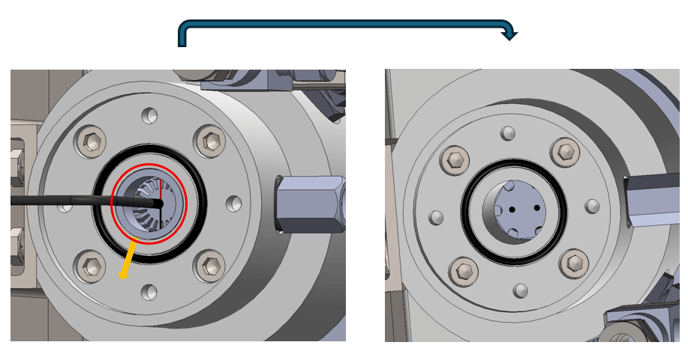

4\. Remove the protective sleeve.
Gently **pull out the LED light** from its housing, taking care not to damage the wiring or lens.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Jun-03-2025-10-28-47-5184-AM.png?width=688&height=361&name=image-png-Jun-03-2025-10-28-47-5184-AM.png)

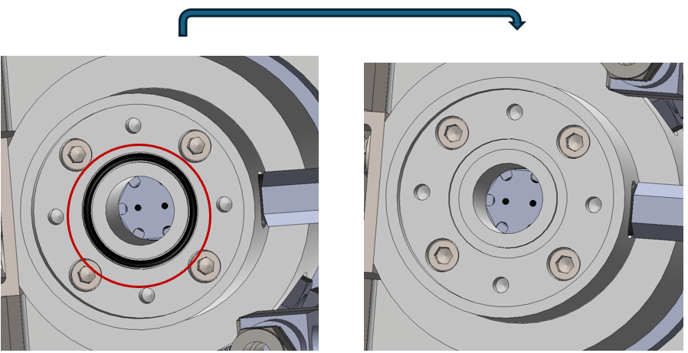

5\. Carefully remove the existing O-ring.
Inspect the groove for any debris or wear.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Jun-03-2025-10-31-29-6359-AM.png?width=688&height=354&name=image-png-Jun-03-2025-10-31-29-6359-AM.png)

**Refit the New Camera LED light**

- Install the **new O-ring**, ensuring it is seated properly and evenly.
- Reinsert the **new LED light** and reassemble the sleeve and cover using the alignment marks.

Ensure the new LED lens and housing interior are clean and free of debris before insertion.

- Reconnect the cable to CN10.
- Restore power and test the system to confirm proper operation.
