      Smart ESM Debubbler cleaning

      A guide on how to clean debubbler

      Overview of the Debubbler

      Procedure:

      Step 1: Remove screws and bracket (6).

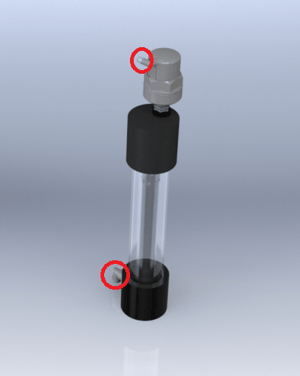

      Step 2: Disconnect Inlet/outlet tubing (4) & (5).

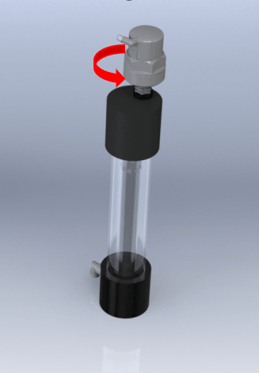

      Step 3: Remove the Automatic Air Vent (1).

      Handle with caution due to its weight.

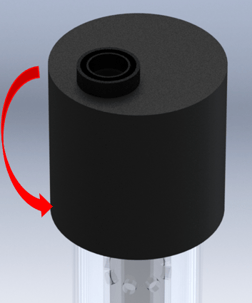

      Step 4: Remove debubbler outlet cup (2)

      Handle with caution due to its weight.

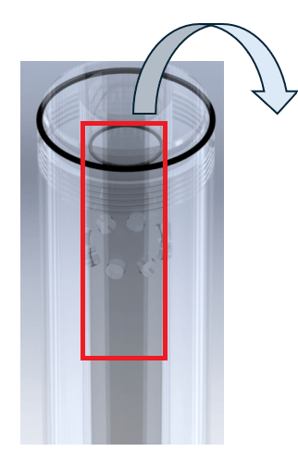

      Step 5: Remove the small tube

      Handle with care; it is acrylic.

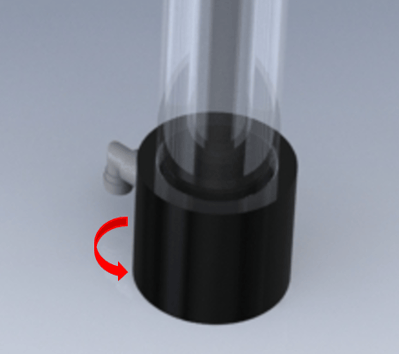

      Step 6. Remove debubbler inlet cap (3)

      Handle with caution due to its weight.

      Step 7: After dismantling all parts, mix a small amount of mild dish soap with warm water and clean all the parts , avoiding abrasive cleaners.

      Inspect all tubes and O-rings, replacing any damaged or scratched components.

      Liquids to Avoid

      • Alcohol: Can cause the acrylic to crack or become cloudy.
      • Acetone: Can soften, craze, or even dissolve the acrylic.
      • Ammonia: Found in many glass cleaners, can damage the surface

      Reassemble components in reverse order, ensuring O-rings are fitted and tubes are properly seated.
