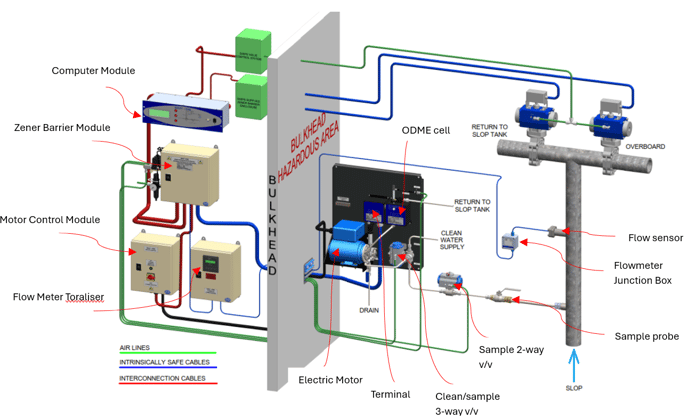

ODME Assembly Overview
Main Spare parts

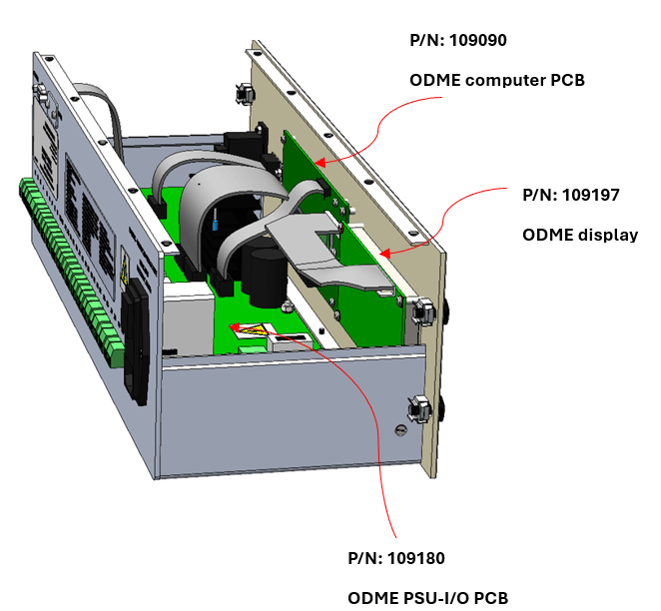

ODME Computer Module Assy

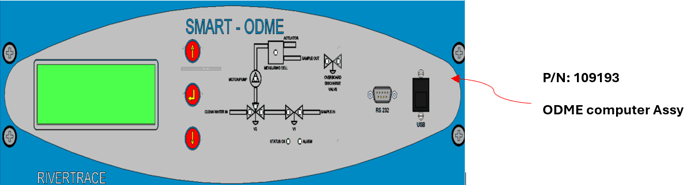

Smart ODME Computer module assembly - Rivertrace Part Number: 109193
Smart ODME Computer processor PCB: 109090
Smart ODME Computer IO PCB - Rivertrace Part Number: 109180
Smart ODME LCD (Display) - Rivertrace Part Number: 109197
ODME Zener Barrier Module

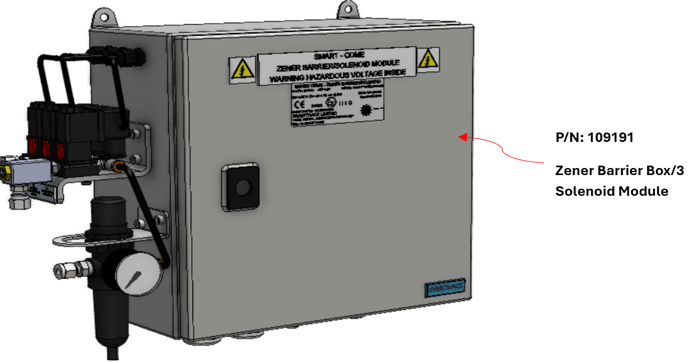

Smart ODME 3 solenoid Zener barrier module - Rivertrace Part Number: 109191

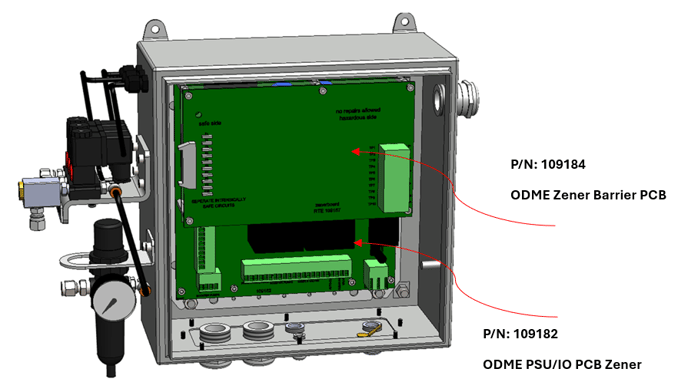

Smart ODME Zener barrier PCB (Small, front PCB)- Rivertrace Part Number: 109184
Smart ODME Zener barrier PSU / IO PCB (Large, rear PCB)- Rivertrace Part Number: 109182
Flow meter Totalizer, flow sensor, Junction Box

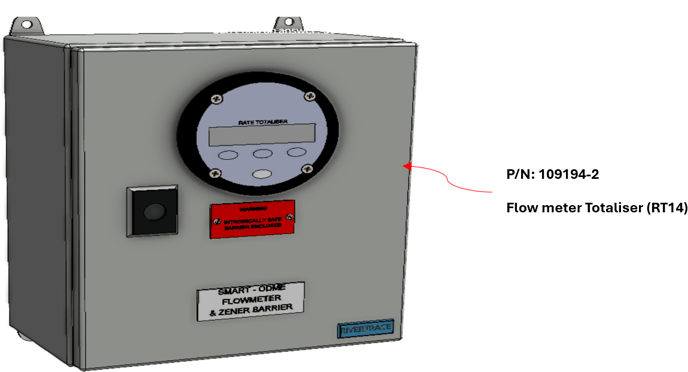

Smart ODME Flow meter totaliser module - Rivertrace Part Number: 109194-2

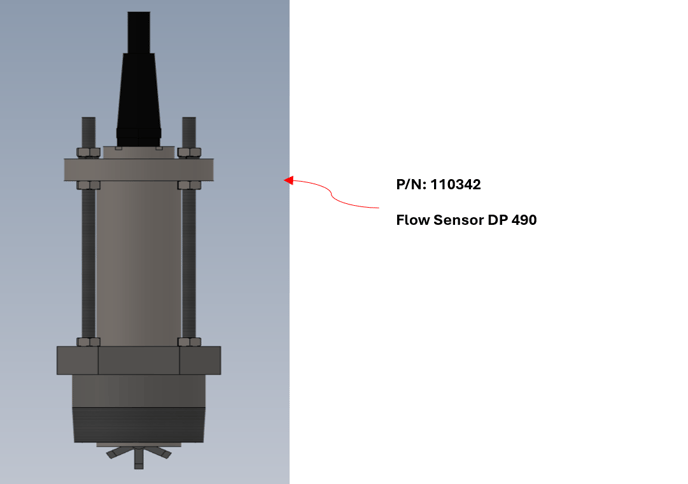

Smart ODME Flow sensor paddle wheel DP490 - Rivertrace Part Number: 110342
Flow rate Totalizer & flow sensor (RT14)
Smart ODME Flow rate totaliser RT14 - Rivertrace Part Number: 112702

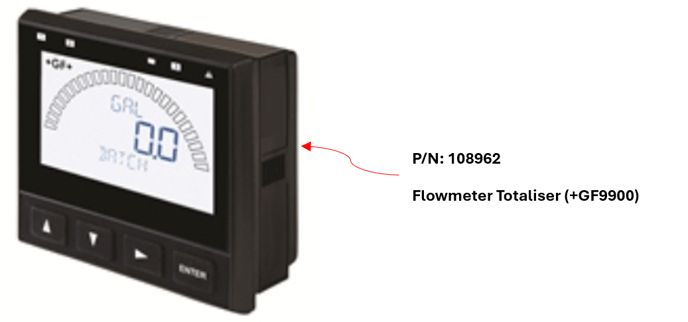

Smart ODME Flow rate totaliser +GF9900 - Rivertrace Part Number: 108962
ODME VPC (Valve, Pump, Cell) Unit

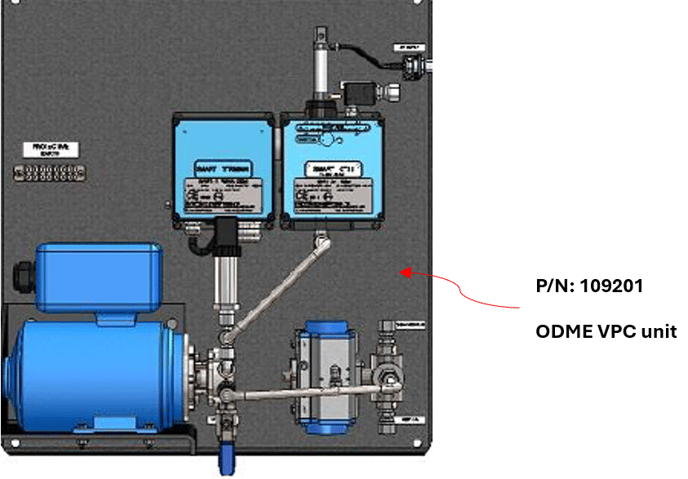

Smart ODME 440V Electric motor complete VPC - Rivertrace Part Number: 109201
Smart ODME cell Assembly - Rivertrace Part number: 109187

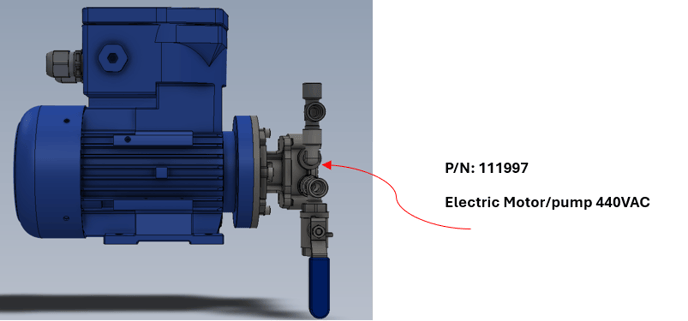

Smart ODME Replacement 440V Motor / pump - Rivertrace Part Number: 111997
Motor Control Enclosure

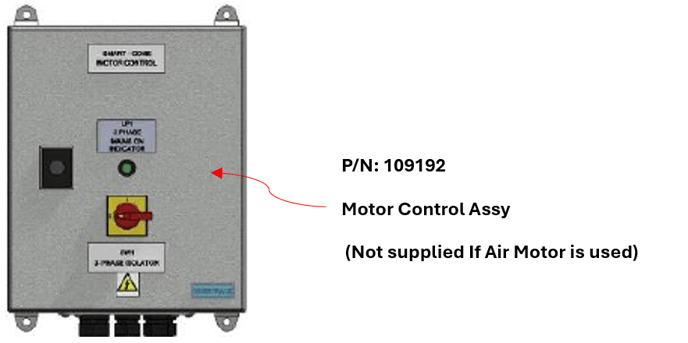

Smart ODME Electric motor control module - Rivertrace Part Number: 109192

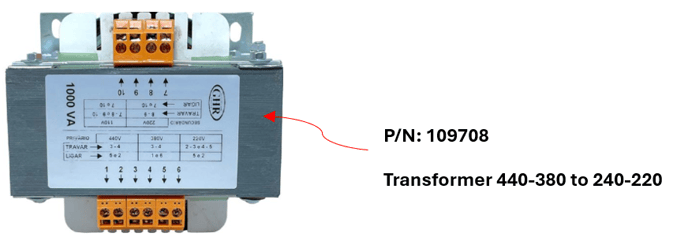

Smart ODME Motor control motor heater transformer - Rivertrace Part Number: 109708

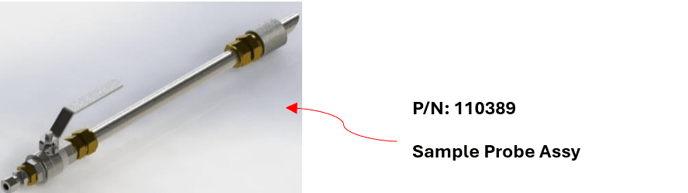

Smart ODME Sample probe assembly - Rivertrace Part Number: 110389
Printer

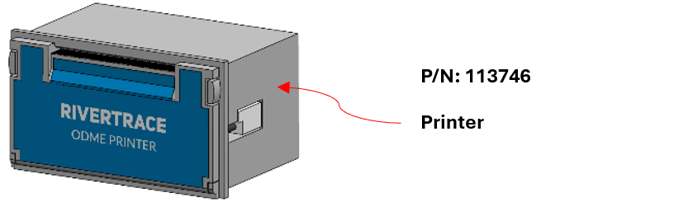

Smart ODME replacement printer only (Not Kit) - Rivertrace Part Number: 113746
