# Smart ESM pH Probe Calibration Procedure

## To calibrate the pH probe using a certified buffer solution

**Spare parts required:**

> Ph Calibration Fluid 4.01 Ph                 **(**Part Number  112459)
>
> Ph Calibration Fluid 10.01 Ph               (Part Number 112460)

Note: The pH solution sachets should be left in the Smart ESM enclosure so that they match the temperature of the pH probe.

> **Procedure:**

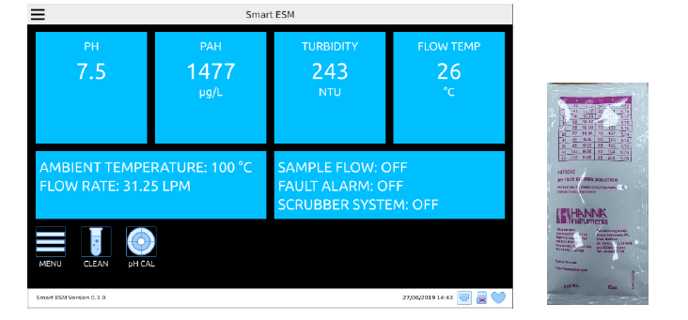

Step 1 : Remove pH probe from Smart ESM cell ensuring that the cable that connects the pH probe to the Smart ESM is still connected and the ESM is powered up.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Feb-13-2025-10-05-42-5413-AM.png?width=688&height=321&name=image-png-Feb-13-2025-10-05-42-5413-AM.png)

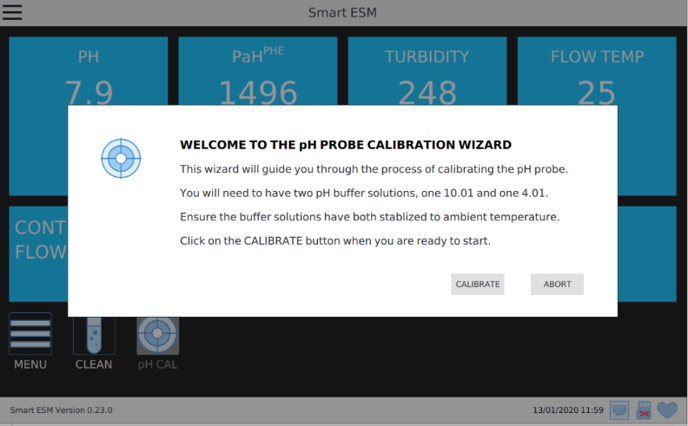

Step 2: Press the pH CAL button on the touchscreen and follow the instructions shown on the screen.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Mar-03-2025-04-09-32-0584-PM.png?width=688&height=427&name=image-png-Mar-03-2025-04-09-32-0584-PM.png)

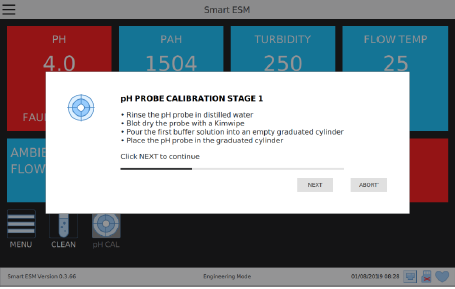

Step 3: Follow the instructions shown on the screen and press the "CALIBRATE" button on the screen.

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Mar-03-2025-04-25-38-2625-PM.png?width=688&height=437&name=image-png-Mar-03-2025-04-25-38-2625-PM.png)

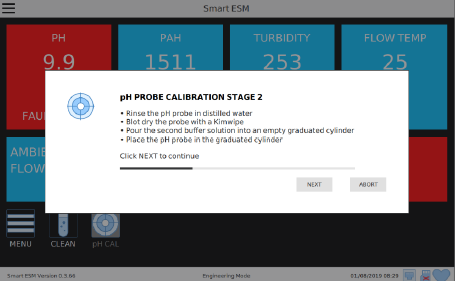

Step 4: Follow the instructions shown on the screen and open the 4.01 pH buffer solution
And insert the probe into the solution and press the NEXT button on the screen

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Mar-03-2025-04-26-11-9230-PM.png?width=688&height=424&name=image-png-Mar-03-2025-04-26-11-9230-PM.png)

Step 5:Follow the instructions shown on the screen and open the10.01 pH buffer solution
And insert the probe into the solution and press the NEXT button on the screen

![](https://hub.rivertrace.com/hs-fs/hubfs/image-png-Mar-03-2025-04-11-16-8235-PM.png?width=688&height=424&name=image-png-Mar-03-2025-04-11-16-8235-PM.png)

Step 6: The screen will indicate that the pH probe is now calibrated and also show the expiry date of the probe’s calibration.

Step 7: The calibration certificate 112512 should be completed and left with the Smart ESM monitor.
